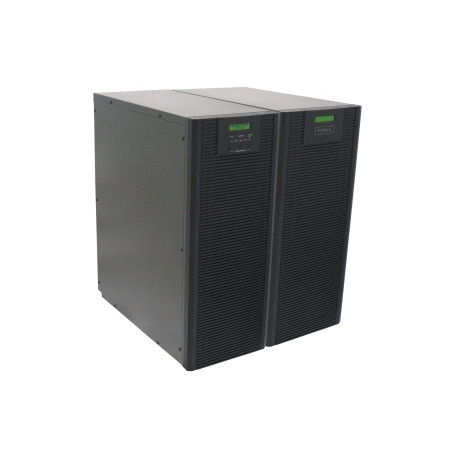

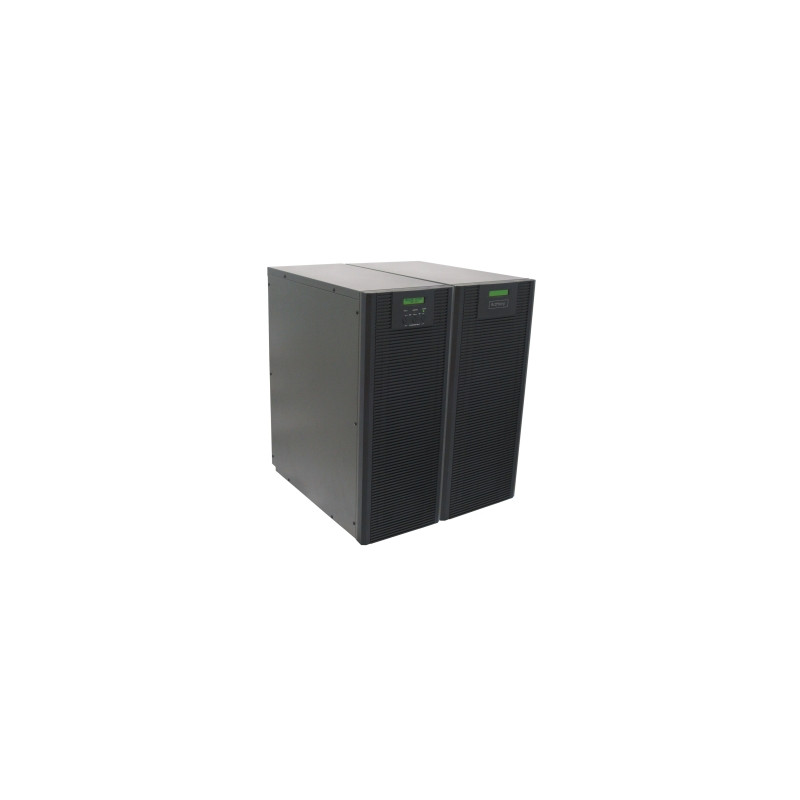

Effekta Online-USV, 16000VA, 30min, 3/1 oder 1/1 Phasig
Effekta Online-USV, 16000VA, 30min, 3/1 oder 1/1 Phasig
MHD-Modular, incl. PowerShut+cable input/output (3/1 or 1/1 phase) specify when ordering!, RS-232 interface,***Dual converter***2 year guarantee,LED/LCD display,
Dimensions UPS: 965x442x700 (HxWxD in mm), 105 kg
Dimensions battery cabinet: 2x965x442x700 (HxWxD in mm), 2x330 kg
Online double converter with sine output, modular design in 6-slot cabinet
Input voltage: optionally 1-phase or 3-phase
1 x 230 VAC or 3 x 400 VAC
Input frequency: 50/60 Hz ± 8% Power factor: 0.98
Total output power: 16000 VA / 11200 W
Output voltage: 1 x 230 VAC ± 2%
Output power per module: 4000 VA / 2800 W
Number of modules: 4 (expandable up to max. 6 modules)
System configuration: N+1 parallel-redundant
Output frequency: 50/60 Hz ± 2%
Overload capacity: 110-130% for 30s, >130% for 2s
Autonomy time: 30 minutes at rated load, extendable
Batteries: maintenance-free lead-acid batteries 120V/28Ah, with ten years service life
Battery type: 10 x EFFEKTA BT12-28
Furnishing:
Electronic bypass
LC display with various indications of operating states
RS232 (1x) and RS485 (3x) interface
Expansion slots (SNMP, relay)
Lan-Powershut Shutdown and management software for all current
Operating systems (incl. RS232 cable)
Features:
Modular construction
Parallel-redundant configurable
Subsequent performance extension
Hot-swappable modules
Subsequent battery extension
