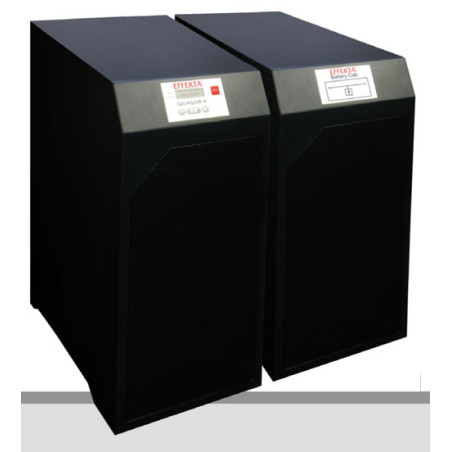

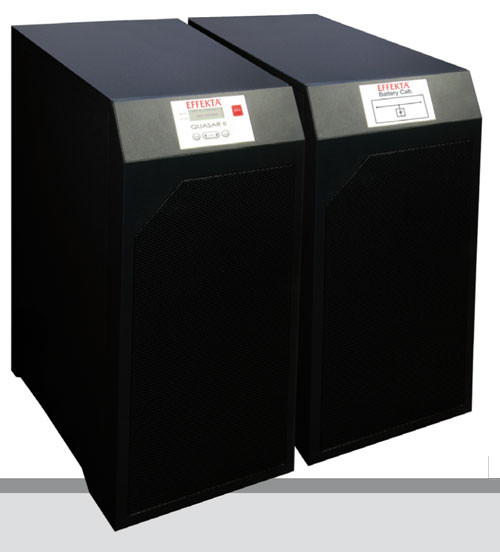

Effekta Online-USV, 30000VA, 11min, 3/3, QuasarII,
UPS Quasar II 30kVA, online double converter
11 min., 3/3-phase, black, RS232
IGBT rectifier
LAN powershut + M2505 cable
consisting of:
- UPS Quasar II 30 kVA
- Battery cabinet
- Batteries 120x 12V/9.5Ah
with the following specifications:
UPS classification:
Online double converter (VFI-SS-111) according to IEC 62040-3
Rectifier: IGBT rectifier bridge
Input power factor: 0.99
Network disturbances: < 3% THD (current)
Input voltage: 3-phase + N 380/400/415 VAC +/- 10%
Input frequency: 50/60 Hz
Input frequency range: 40/70 Hz
Inverter: IGBT inverter with PWM control
Output power: 30 kVA / 24 kW
Output voltage: 3-phase + N 380/400/415 VAC
Output frequency: 50/60Hz
Overload capacity: < 125% for 10 min., >125% for 5 sec.
Nominal output current: 44 A
Crest factor: 3:1
Static bypass: Electronic thyristor switch,
uninterruptible overload capacity: 10 x Inom for 100 ms
maintenance-free lead-acid batteries,
with 5 years service life expectancy
Battery type: 120 pieces EFFEKTA BT12-9.5
Autonomy time: 11 minutes at rated load, extendable
Generally:
UPS dimensions: 910 x 390 x 900 (HxWxD in mm)
Weight UPS: 65 kg
Dimensions battery cabinet: 910 x 390 x 900 (HxWxD in mm)
Battery cabinet weight: 380 kg
Working temperature: 0 - 40°C, battery max. 20° C
Power loss: max. 2047 W
Noise level: max. 58dB(A)
Protection class: IP20
Colour: RAL 7016
Radio interference suppression: according to EN 50091-2 and EN55022 Class "A"
Features:
IGBT rectifier
Redundant parallel connection of up to eight systems (option)
electronic bypass, manual service bypass
Interfaces:
RS232 interface
Relay contacts
SNMP via adapter (option)
Automatic battery test configurable
Event log
Microprocessor-controlled control and display panel
