Effekta online UPS, 10000VA, 40min at cos phi 0.7, ADIRA, 1/1-phase, XL versions,

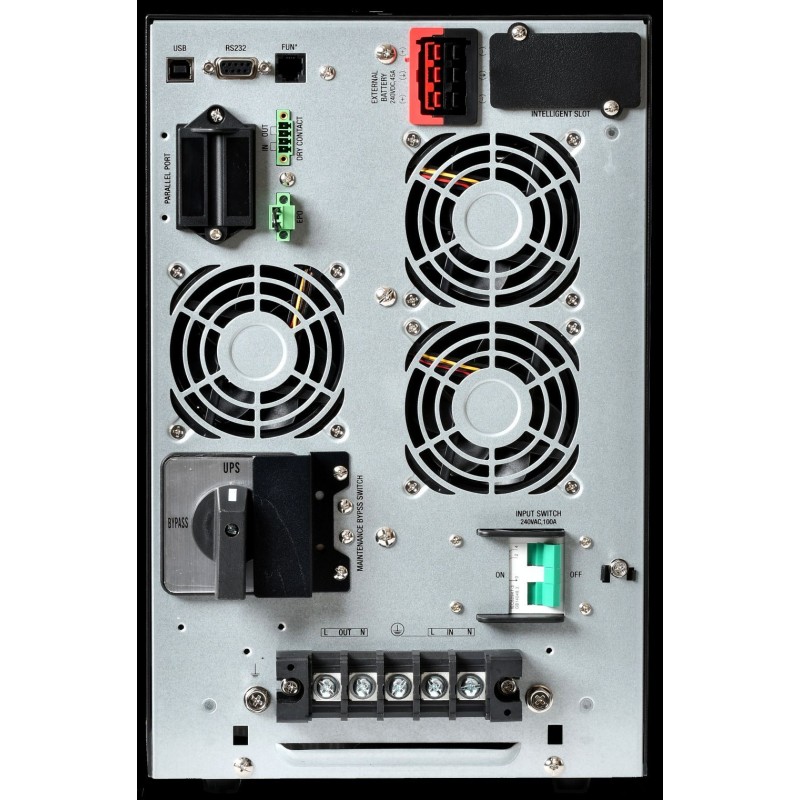

* Order-related, non-cancellable * UPS ADIRA T 10000 XL, online continuous conversion 10000VA/10000W, 40 min. (PF 0.7) 1/1-phase, tower download UPS software, USB+RS232 cable consisting of: 1 x ADIRA T 10000 XL 2 x battery pack with the following specifications: UPS classification: online continuous conversion (VFI-SS-111) according to IEC 62040-3 Output power: 10000 VA / 10000 W Input voltage: 1 x 230 (160VAC-276) VAC Input frequency: 50/60 Hz (45 - 66 Hz) Output voltage: 1 x 230 VAC ± 1% Output frequency: 50/60 Hz ± 0.1% Charger: adjustable up to max. 12 A Autonomy time: 40 minutes (pf 0.7), expandable Maintenance-free lead-fleece batteries with a 5-year service life expectancy UPS dimensions: 348 x 225 x 600 (HxWxD in mm) Weight: 16 kg Battery pack dimensions: 589 x 225 x 490 (HxWxD in mm) Weight: 116 kg incl. batteries Number of battery packs: 2 Technology/equipment: Online double converter with sine wave output Electronic bypass Connections: Input and output on terminals USB and RS232 interface, EPO, parallel port Signal contact interface Communication slot for optional SNMP/relay card Performance features: Power factor 1.0 Efficiency in HE mode up to 98%, normal operation 95% Extendable battery time using external battery packs Parallel redundant operation possible Software: free download LAN-PowerShut UPS shutdown and management software for all current operating systems (incl. RS232 + USB cable)
