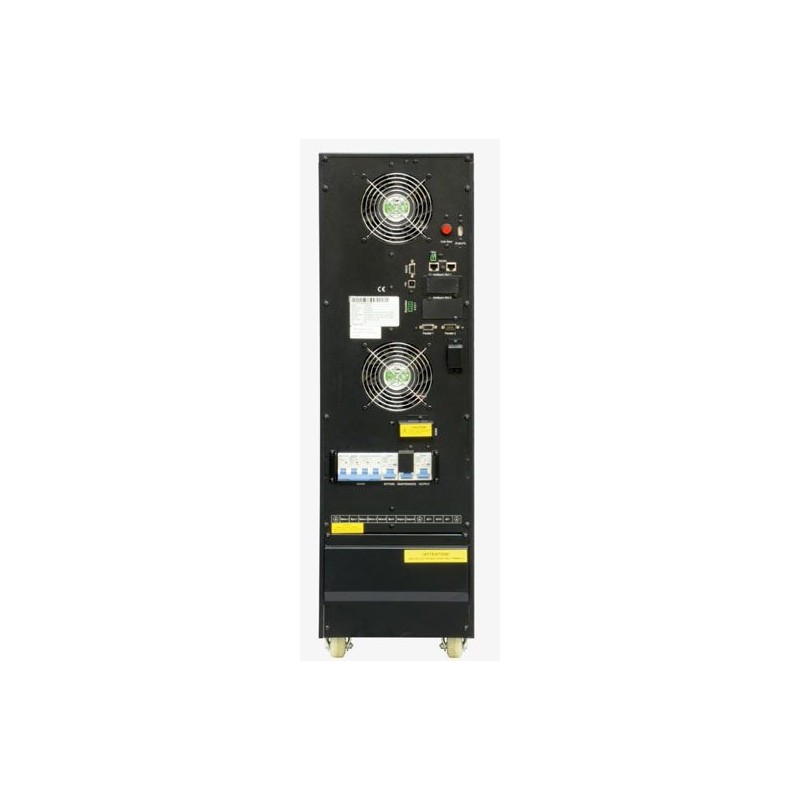

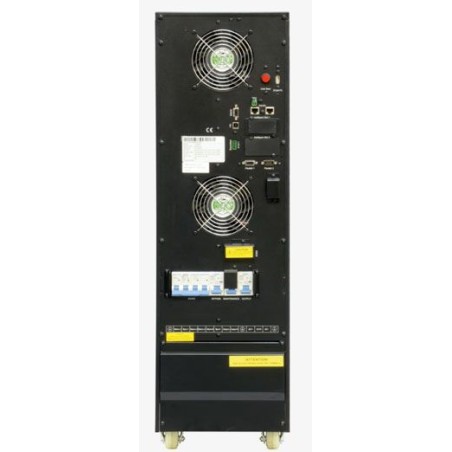

Effekta Online-USV,10000VA, 19min bei cos phi 0.7 , MINERVA 31, 3/1-phasig,
*Order-related, non-cancellable*, UPS system MINERVA 31 - 10 kVA nominal power 10kVA/10kW 19/43 min. (100/50% load), online continuous 3/1 phase, black UPS software LAN-Powershut for download consisting of: - 1x system cabinet MINERVA 31 - 10 kVA - 1x battery cabinet - 60x battery BT12-9.5 UPS system cabinet: Dimensions UPS: 868x250x900 (HxWxD in mm) Weight UPS without batteries: 60 kg Battery cabinet: Dimensions: 868x250x828 (HxWxD in mm) Weight including 60 batteries: 217 kg Autonomy time: 19/43 minutes (100/50% load), expandable Batteries: Maintenance-free lead-fleece batteries with 5 years expected service life Battery type: EFFEKTA BT12-9.5 UPS classification: Online double converter (VFI-SS-111) according to IEC 62040-3 Rectifier: IGBT rectifier bridge Mains interference: <3% THDi (current) Input voltage: 380/400/415 VAC (3Ph+N+PE) or 220/230/240V (L+N+PE) Input voltage range: 208 to 478 VAC or 120 to 276 VAC, Input frequency range: 40Hzû70Hz autom. Detection efficiency AC/AC up to 94.5% ECO mode max. 98% Output voltage: 220/230/240 VAC (L+N+PE) Output frequency: 50/60 Hz ± 1 Hz Output power factor 1.0 Overload capacity: in normal operation: <110% for 60 min, <125% for 10 min, <150% for 1 min. in battery operation: <110% for 10 min, <125% for 1 min, <150% for 1 sec. General: Working temperature: 0 - 40°C, battery max. 25° C Protection class: IP20 Color: black Radio interference suppression: according to DIN EN 62040-2, class C3 Features: Large 7" multi-language touchscreen LCD panel Interfaces: RS232, RS485, switching contacts, parallel port, REPO 2x expansion slot for optional relay and SNMP card Electronic bypass, manual service bypass N+X parallel operation Battery charging parameters configurable via LCD panel Intelligent 3-stage battery charging Periodic, automatic battery test adjustable
Recommended accesories for Effekta Online-USV,10000VA, 19min bei cos phi 0.7 , MINERVA 31, 3/1-phasig,
