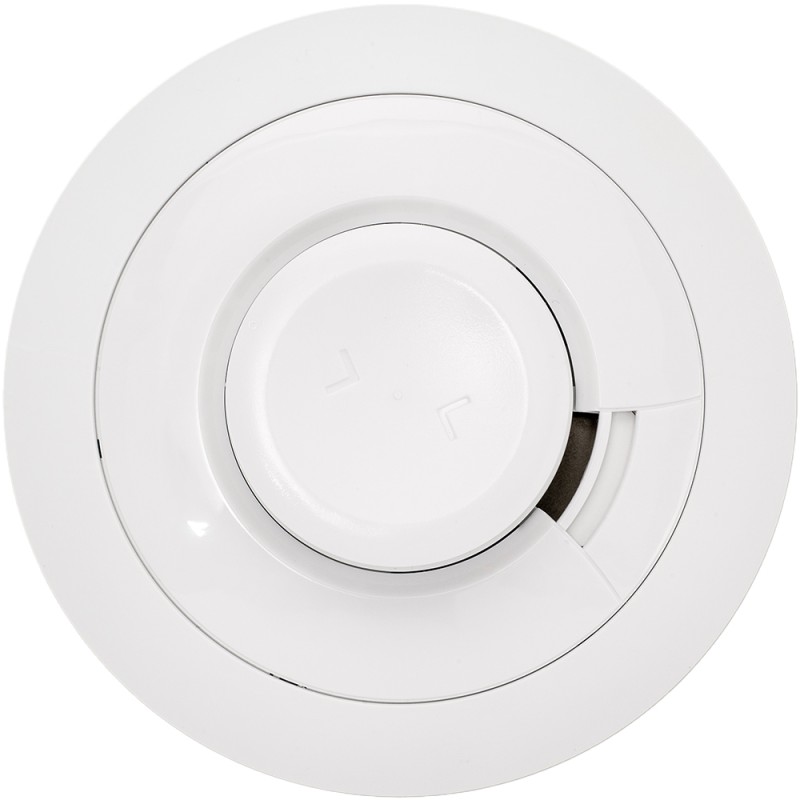

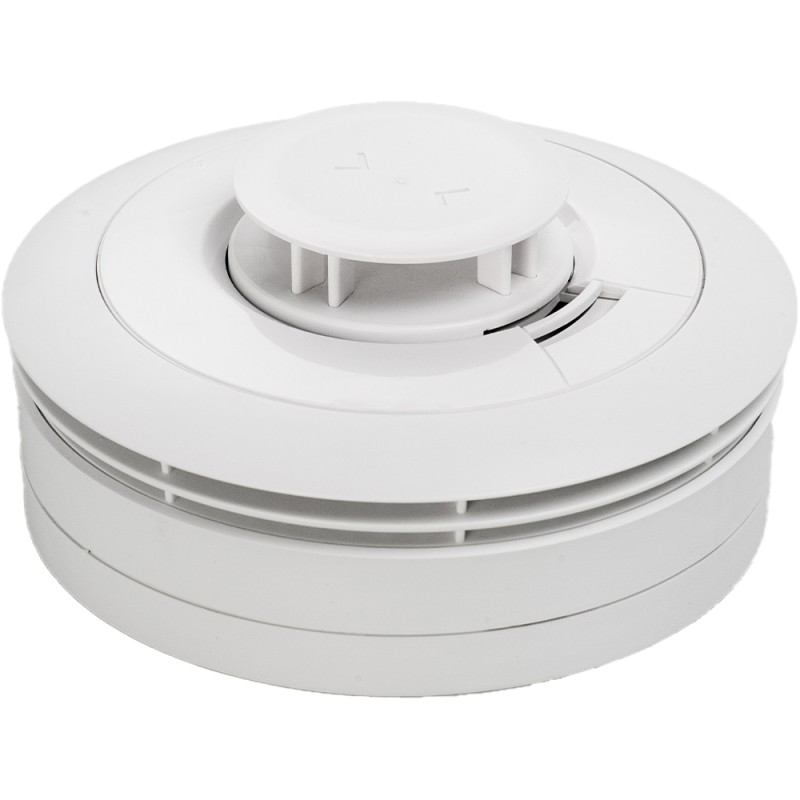

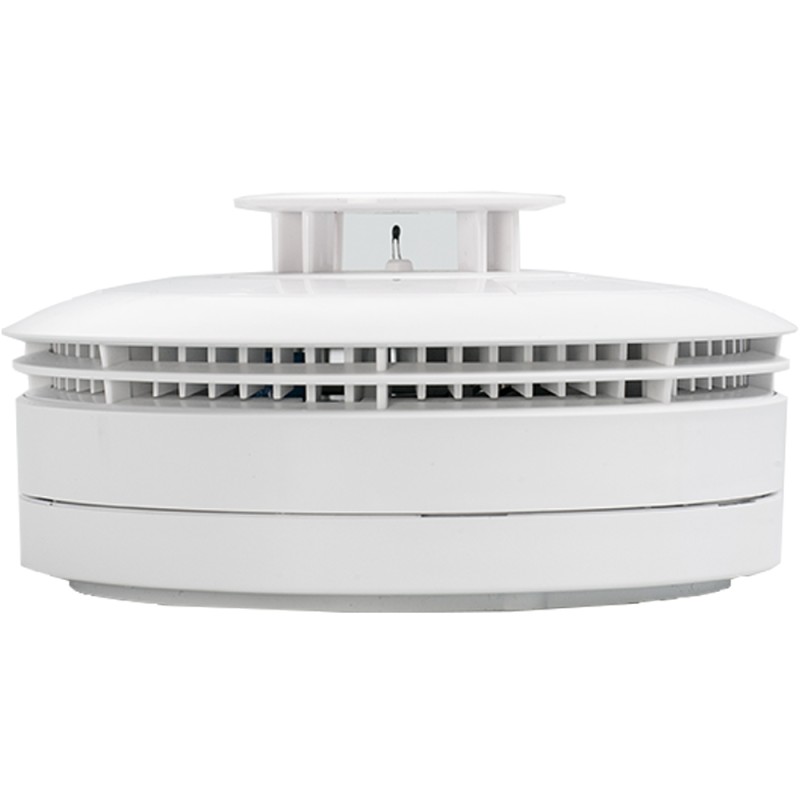

Wireless smoke and heat detector, 868 - 868.6 MHz, white, ceiling, 85 dB
Wireless smoke and heat detector, 868 - 868.6 MHz, white, ceiling, 85 dB
Wireless smoke and heat detector with self-test and muting function
The AVI-SMD-976-PGPLUS is a wireless combination detector for reliable early fire detection using smoke and heat sensors. With an integrated audible alarm, self-test function and compatibility with modern panels such as IQ Panel 4 or PowerMaster-30 G2 (from version K20.214), this detector is ideal for demanding security applications.
Product features:
- Reliable detection thanks to smoke and heat sensor technology: Detects smoke particles as well as rapid temperature rises and fixed heat limits - for precise alarm triggering.
- Powerful acoustic alarm: Integrated piezo signalling device with over 85 dB(A) at 3 m provides a reliable warning in an emergency.
Technical features:
Radio frequency: 868 MHz (CE)
Operating temperature: -10 °C to +40 °C (CE)
Humidity: 15 % - 95 % (non-condensing)
Acoustic signal: >85 dB at 3 m
Power consumption: 40 µA (standby), 25 mA (alarm)
Heat sensor - fixed value: 58 °C ±4 °C (CE)
Heat sensor - temperature rise: >40 °C with ≥8.3 °C/min
Smoke sensitivity: 3.13 %/Ft ±0.59
Certification: EN 14604
Batteries: 2× 3 V CR123A (Panasonic recommended)
Battery life: up to 6 years (CE)
Dimensions: Ø 120 mm × 46 mm
Weight: 210 g
Lifetime of the detector: approx. 10 years
Details about Wireless smoke and heat detector, 868 - 868.6 MHz, white, ceiling, 85 dB
| 01-Gehäusefarbe | Weiss |
|---|---|
| compatibility | PM30G2 |
| TYPE OF EQUIPMENT | Rauchmelder |
| Montageart | Decke |
| Detektionsart | Rauch |
| Connection | Funk |
| Serie | PowerG |
