Ubiquiti Wireless AP WIFI7 &bull BE9200 &bull 4x4 &bull Outdoor &bull 2.5 GbE &bull UniFi &bull U7-Pro-Outdoor
Article Nr 239830
Ubiquiti Wireless AP WIFI7 &bull BE9200 &bull 4x4 &bull Outdoor &bull 2.5 GbE &bull UniFi &bull U7-Pro-Outdoor
Ubiquiti Wireless AP WIFI7 &bull BE9200 &bull 4x4 &bull Outdoor &bull 2.5 GbE &bull UniFi &bull U7-Pro-Outdoor
All-weather IP67 WiFi 7 AP with 6 spatial streams, built-in directional super antenna and articulating mount.
Highlights:
- WLAN 7
- 6 spatial streams
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Can be switched via software from internal directional antennas to supplied external omnidirectional antennas
- Over 300 connected devices
- power supply via PoE+
- 2.5 GbE uplink

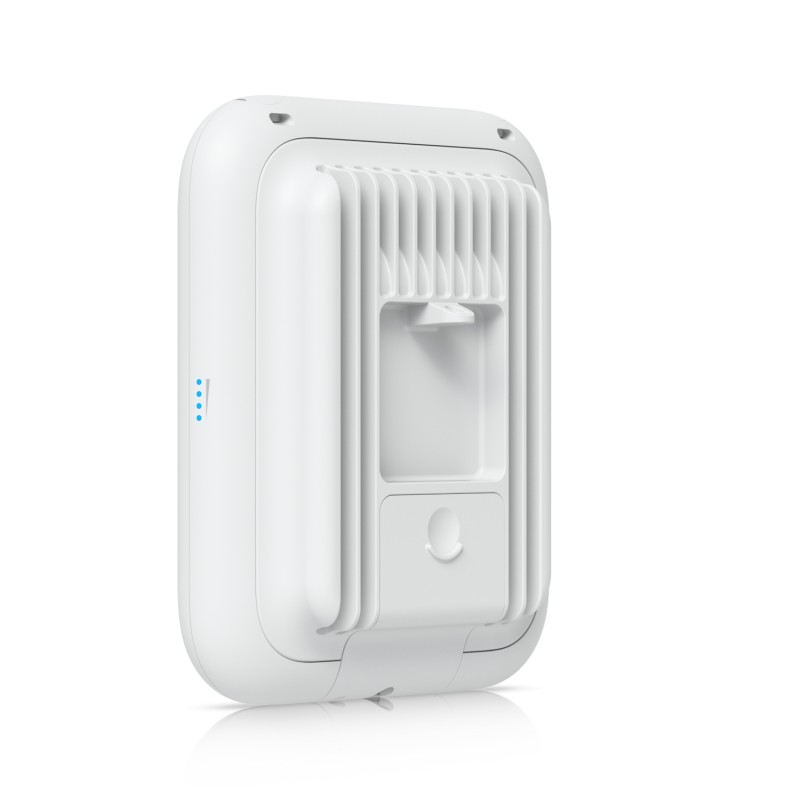

- Versatile wall and pole mounting
- Weatherproof (can be used outdoors)
Technical data:
Mechanically | |
---|---|
Mass | Without bracket: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6 inches) With bracket: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8 inches) |
Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (0.3 lb) |
housing material | UV stabilized polycarbonate, aluminum alloy |
mounting material | UV-stabilized polycarbonate |
diameter of the mast mount | 2563.5 mm (12.5") on the pipe outer diameter |
wind survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
weather resistance | IPX6 IP67 with cable gland door kit (included) |
Hardware | |

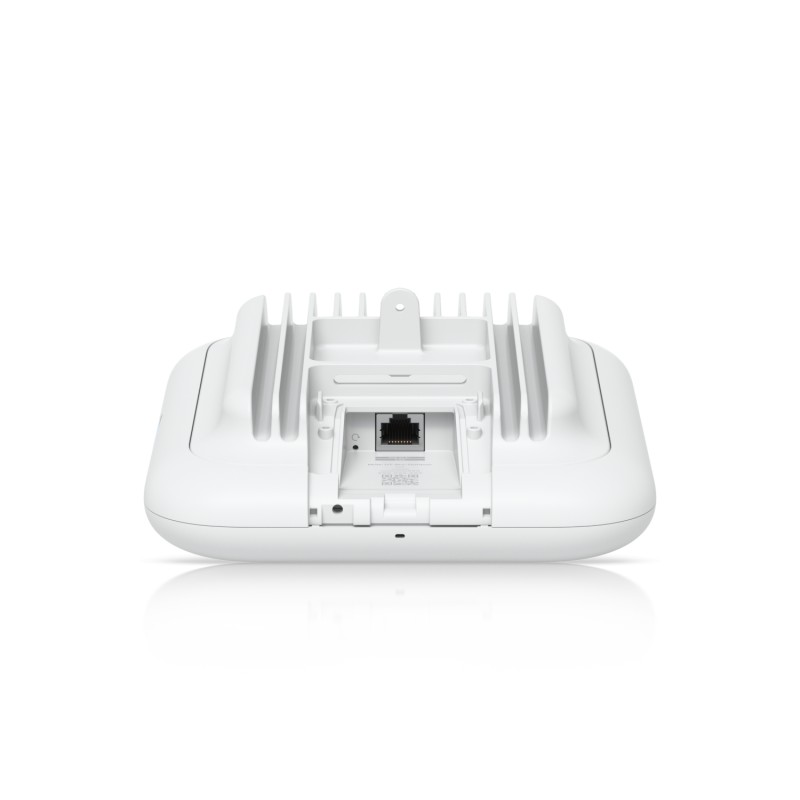

network interface | (1) 1/2.5 GbE RJ45 connector |
management interface | Ethernet |
performance method | PoE+ |
power supply | UniFi PoE switch |
Supported voltage range | 42.557 V DC |
Max. power consumption | 21W |
Max. transmission power 2.4 GHz 5 GHz 6 GHz | 23 dBm 29 ??dBm |
MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
Max. data rate 2.4 GHz 5 GHz 6 GHz | 688 Mbit/s (BW40) 8.6 Gbit/s (BW240) |
antenna gain 2.4 GHz 5 GHz 6 GHz | Directional internal: 8 dBi / External omni: 6 dBi Directional internal: 11 dBi / External omni: 8 dBi |
antenna cone width 2.4 GHz 5 GHz 6 GHz | 90° 90° |
antennas | (1) Internal directional antenna (2) RP-SMA connectors for external antenna |

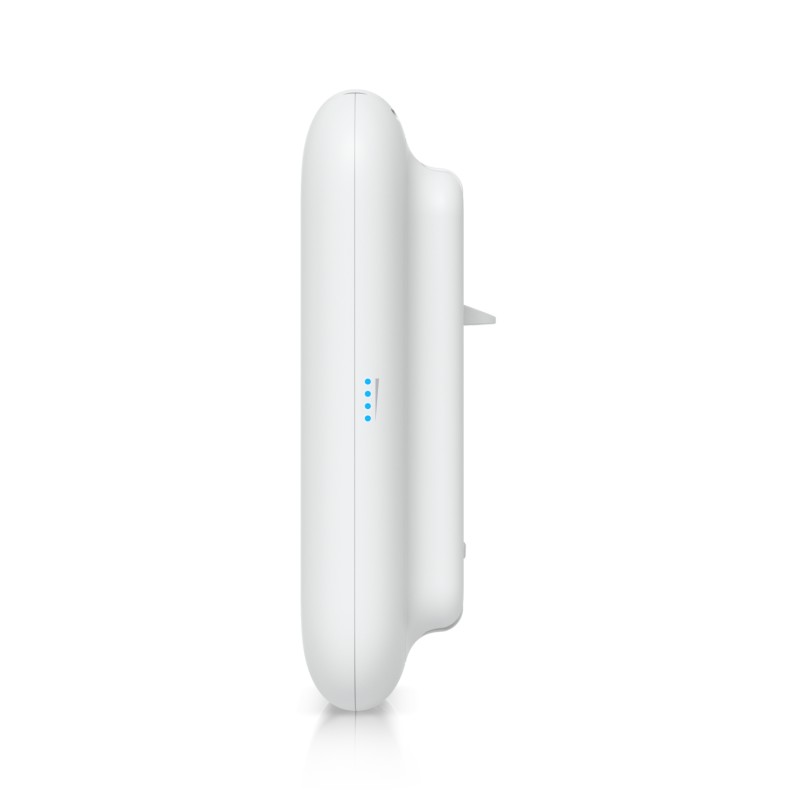

LEDs | (1) Power: white/blue (4) Mesh signal: blue |
button | factory reset |
assembly | Wall, ceiling, mast (included) |
ambient temperature during operation | -30 to 60 °C (-22 to 140 °F) |
humidity during operation | 5 to 95% non-condensing |
certifications | CE |
software | |
WLAN standards | 802.11a/b/g/n/ac/ax/be (WLAN 6, WLAN 7) |
wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | rate limit per user |
isolation of guest traffic | Supports |
Concurrent clients | 300+ |
Supported data rates | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbit/s |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n | 6.5 Mbit/s to 600 Mbit/s (MCS0 MCS31, HT 20/40) |
802.11ac | 6.5 Mbit/s to 3.4 Gbit/s (MCS0 MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
802.11ax (WLAN 6) | 7.3 Mbit/s to 4.8 Gbit/s (MCS0 MCS11 NSS1/2/3/4, HE 20/40/80/160) |
802.11be (WLAN 7) | 7.3 Mbit/s to 8.6 Gbit/s (MCS0 MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
application requirements | |
UniFi network | version 9.0.108 and higher |
Details about Ubiquiti Wireless AP WIFI7 &bull BE9200 &bull 4x4 &bull Outdoor &bull 2.5 GbE &bull UniFi &bull U7-Pro-Outdoor
Category Wireless LAN Brand Ubiquiti Reference 239830 Delivery Time Delivery in 48-72H Condition New
Manufacurer:
U7-Pro-Outdoor
Weight:
U7-Pro-Outdoor
