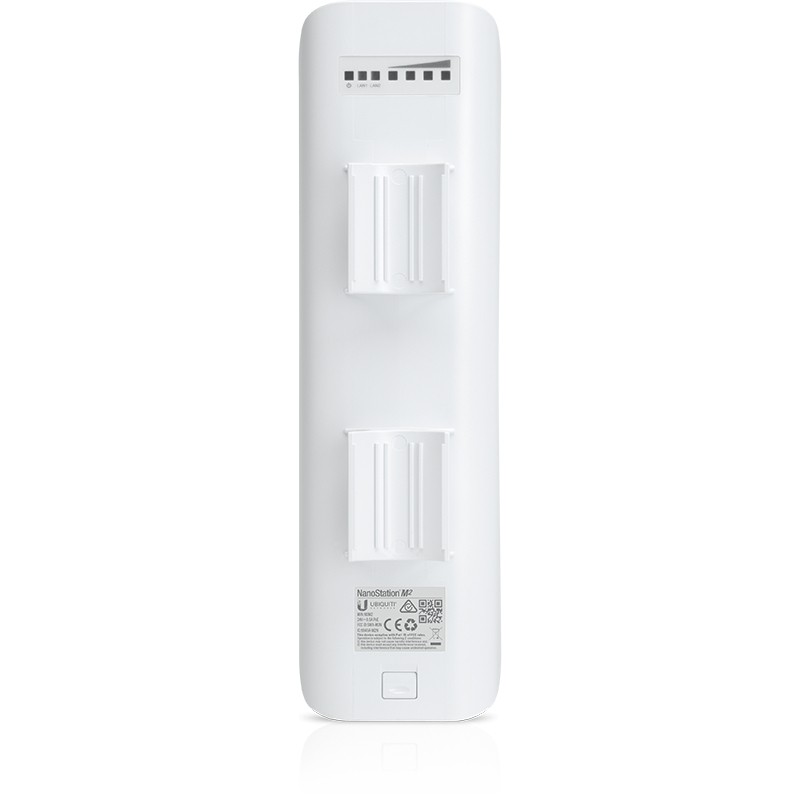

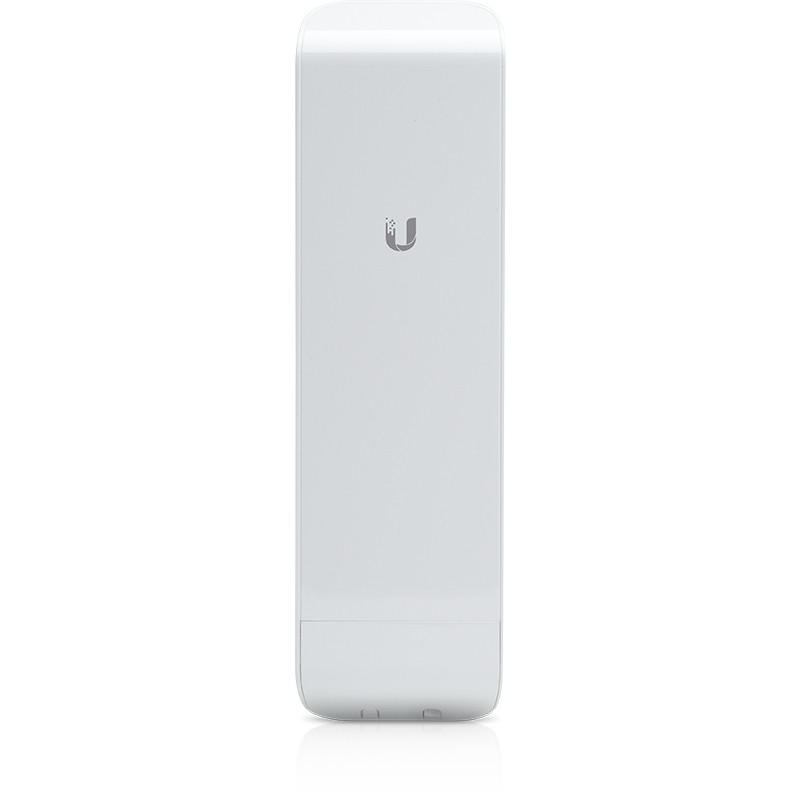

Ubiquiti NanoStation M2, antenna 11dBi, outdoor client MIMO
Ubiquiti NanoStation M2, antenna 11dBi, outdoor client MIMO
Ubiquiti NanoStation M2, antenna 11dBi, outdoor client MIMO
Indoor/Outdoor airMAX 2.4GHz CPE.
2.4 GHz frequency band
Cost-effective, powerful
Plug-and-play integration with airMAX antennas
Technical specifications
| NSM2 | |
|---|---|
| Dimensions | 294 x 31 x 80 mm (11.57 x 1.22 x 3.15") |
| Weight | 400g (14.11oz) |
| Enclosure | UV-stabilized plastic for outdoor use |
| Assembly | Mast mount (kit included) |

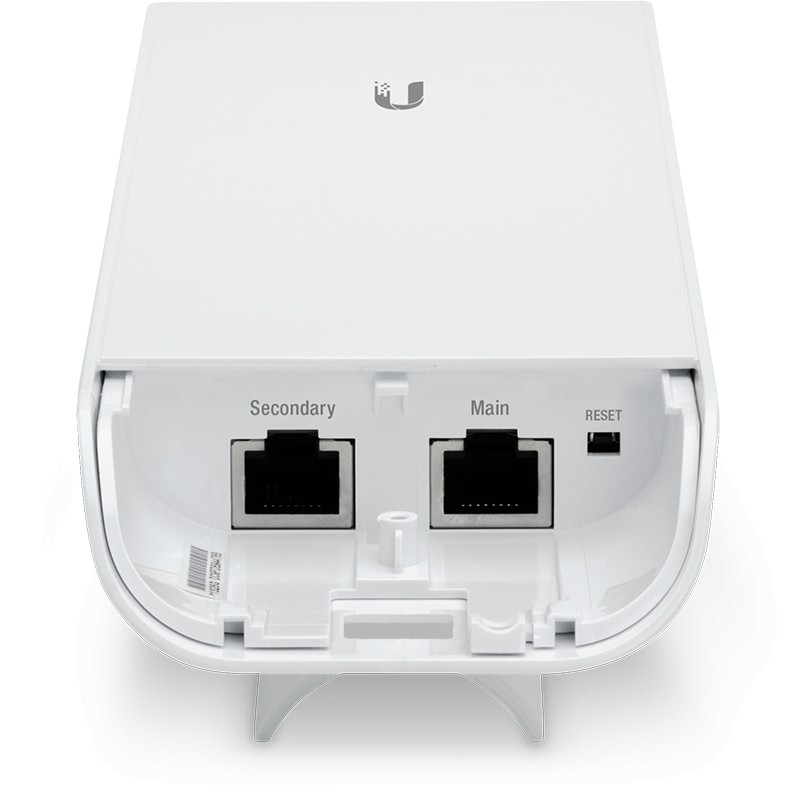

| Network interface | (2) 10/100 Ethernet ports |
| Processor specifications | Atheros MIPS 24Kc, 400MHz |
| Memory | 32MB SDRAM, 8MB Flash |
| Power supply (PoE) 24 V, 0.5 A | 24V, 0.5A |
| Max. power consumption 5.5 W | 8W |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Working frequency | 2412-2462MHz |
| Win | 10.4-11.2dBi |
| frequency | 2.4GHz |
| Cross-pole insulation | At least 23 dB |
| Max. VSWR | 1.6:1 |
| Beam width | 55° (H-Pol) / 53° (V-Pol) / 27° (Elevation) |
| polarization | Dual Linear |
| RoHS compliance | Yes |
| Shock and vibration | ETSI300-019-1.4 |
| operating temperatur | -30 to 75 °C (-22 to 167 °F) |
| Operating humidity | 5 to 95% non-condensing |
| Wireless approvals | FCC, ICC, CE |
